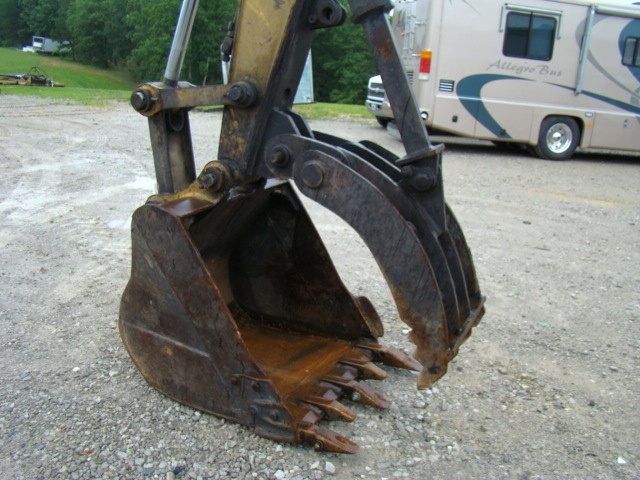

1991 CATERPILLAR E140 CAT EXCAVATOR WITH A THUMB USED EQUIPMENT FOR SALE. 89HP. GOOD CONDITION.READY TO WORK. CALL 606-843-9889. SOME SPEC'S; Dimensions Undercarriage Specification Undercarriage Dimensions
Max Cutting Height 25.9 ft in 7890 mm
Max Loading Height 18 ft in 5490 mm
Max Reach Along Ground 28.8 ft in 8780 mm
Max Vertical Wall Digging Depth 15.5 ft in 4710 mm
Max Digging Depth 19.5 ft in 5930 mm
Width to Outside of Tracks 8.2 ft in 2490 mm
Length of Track on Ground 8.8 ft in 2695 mm
Ground Clearance 1.4 ft in 430 mm
Height to Top of Cab 9.5 ft in 2890 mm
Tail Swing Radius 7.9 ft in 2415 mm
Counterweight Clearance 3.5 ft in 1065 mm
Track Gauge 6.5 ft in 1990 mm
Shoe Size 19.7 in 500 mm
Engine
Make Mitsubishi
Model C 6D14
Gross Power 88.5 hp 66 kw
Displacement 400.3 cu in 6.6 L
Operational
Operating Weight 30798.6 lb 13970 kg
Fuel Capacity 63.4 gal 240 L
Hydrauilc System Fluid Capacity 58.1 gal 220 L
Hydraulic System Relief Valve Pressure 3830 psi 26406.9 kPa
Hydraulic Pump Flow Capacity 69.7 gal/min 264 L/min
Shoe Size 19.7 in 500 mm
Ground Pressure 6.7 psi 46.2 kPa
Max Travel Speed 1.9 mph 3 km/h
Drawbar Pull 24504.2 lb 109 kN
Track Gauge 6.5 ft in 1990 mm
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1 Stick 7'0" (2130mm)
Max Digging Depth 17.5 ft in 5330 mm
Max Reach Along Ground 27 ft in 8240 mm
Max Cutting Height 25.4 ft in 7740 mm
Max Loading Height 17.5 ft in 5330 mm
Max Vertical Wall Digging Depth 13.6 ft in 4150 mm
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2 Stick 9'0" (2740mm)
Max Digging Depth 19.5 ft in 5930 mm
Max Reach Along Ground 28.8 ft in 8780 mm
Max Cutting Height 25.9 ft in 7890 mm
Max Loading Height 18 ft in 5490 mm
Max Vertical Wall Digging Depth 15.5 ft in 4710 mm
Width to Outside of Tracks 8.2 ft in 2490 mm
Height to Top of Cab 9.5 ft in 2890 mm
Ground Clearance 1.4 ft in 430 mm
Counterweight Clearance 3.5 ft in 1065 mm
Tail Swing Radius 7.9 ft in 2415 mm
Length of Track on Ground 8.8 ft in 2695 mm
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Call VisoneRV Today: (606) 843-9889 As always we hope you enjoy your purchase! Thank You. Order Pick Up By Appointment Only Due to the COVID-19 pandemic; Shipments will continue as normal. Order pick up by appointment only ( Wednesday and Friday ). No walk in customers.  |
